Create Device

Now that the blueprint is complete, we can move on to creating the device.

At this level we use the graphical tools — Mobile App and Gateway Web UI. For command-line and API approaches, see Level 3.

Gateway Web UI
Mobile App

caution

This approach is meant only for devices connected through Enapter Gateway.

Open web browser and enter your Gateway's IP address. Click on Energy Management System.

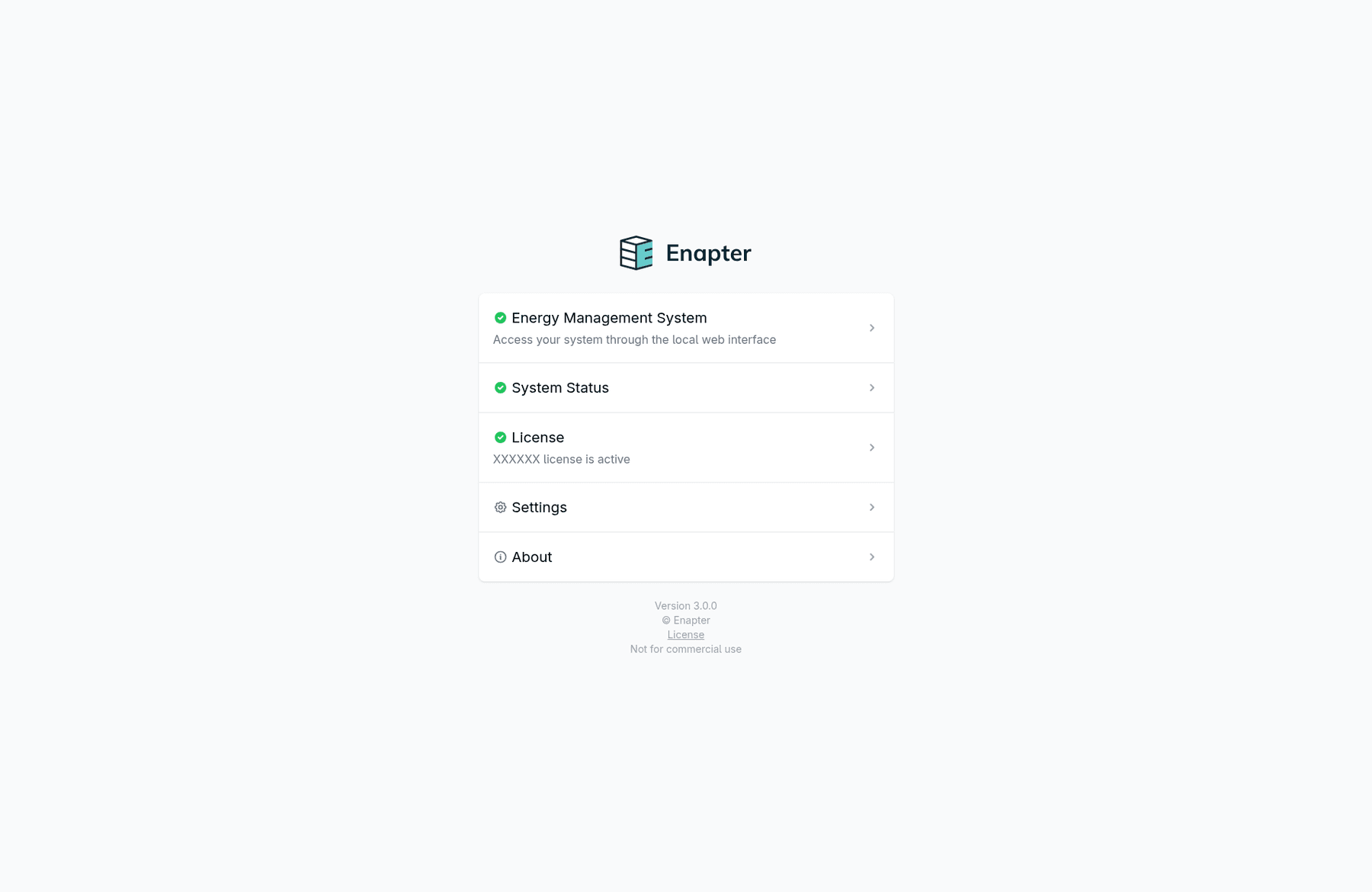

Enapter Gateway home page

Create a new device. Click on New Device and select the UCM as a runtime.

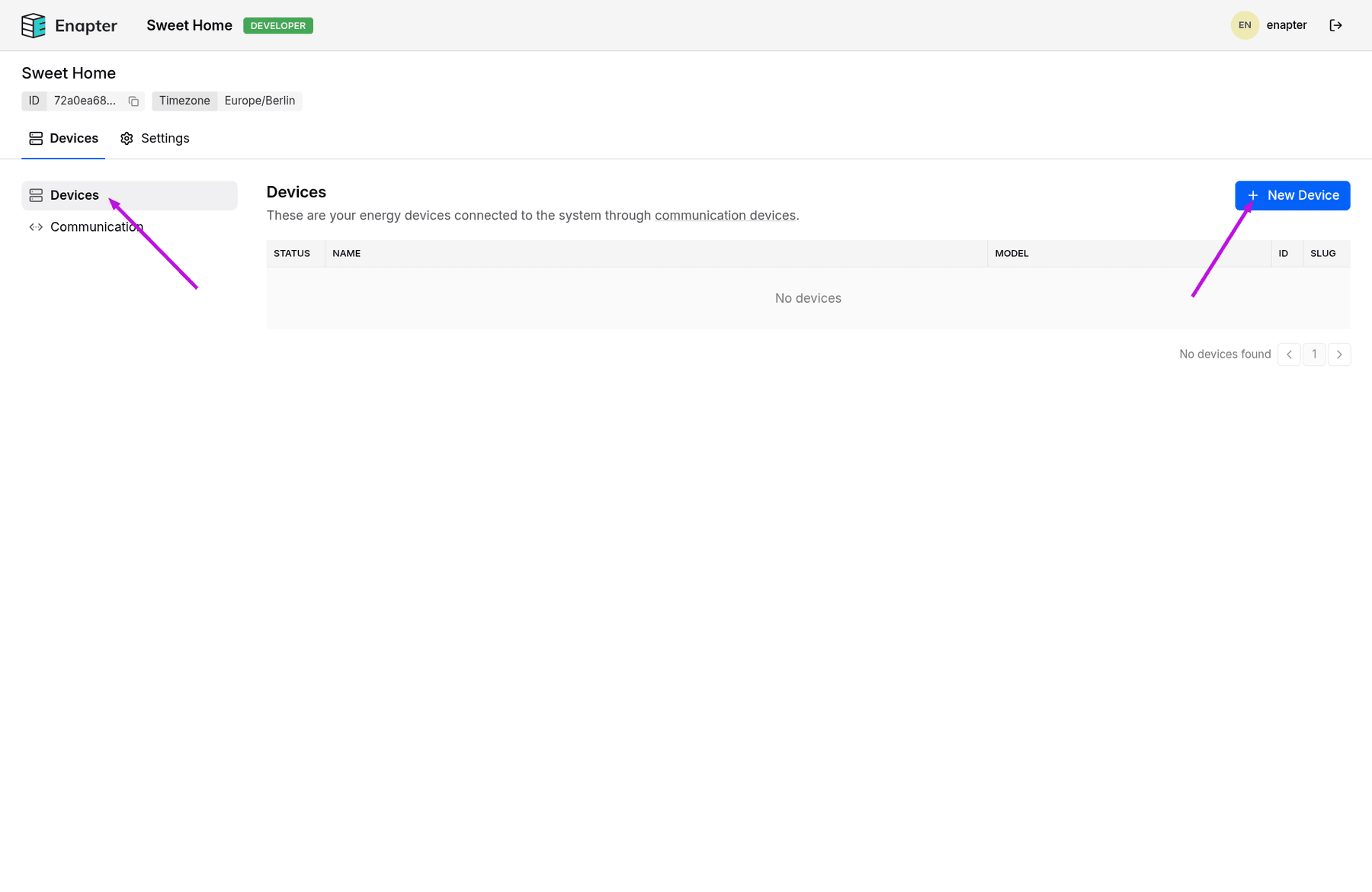

Create a new device

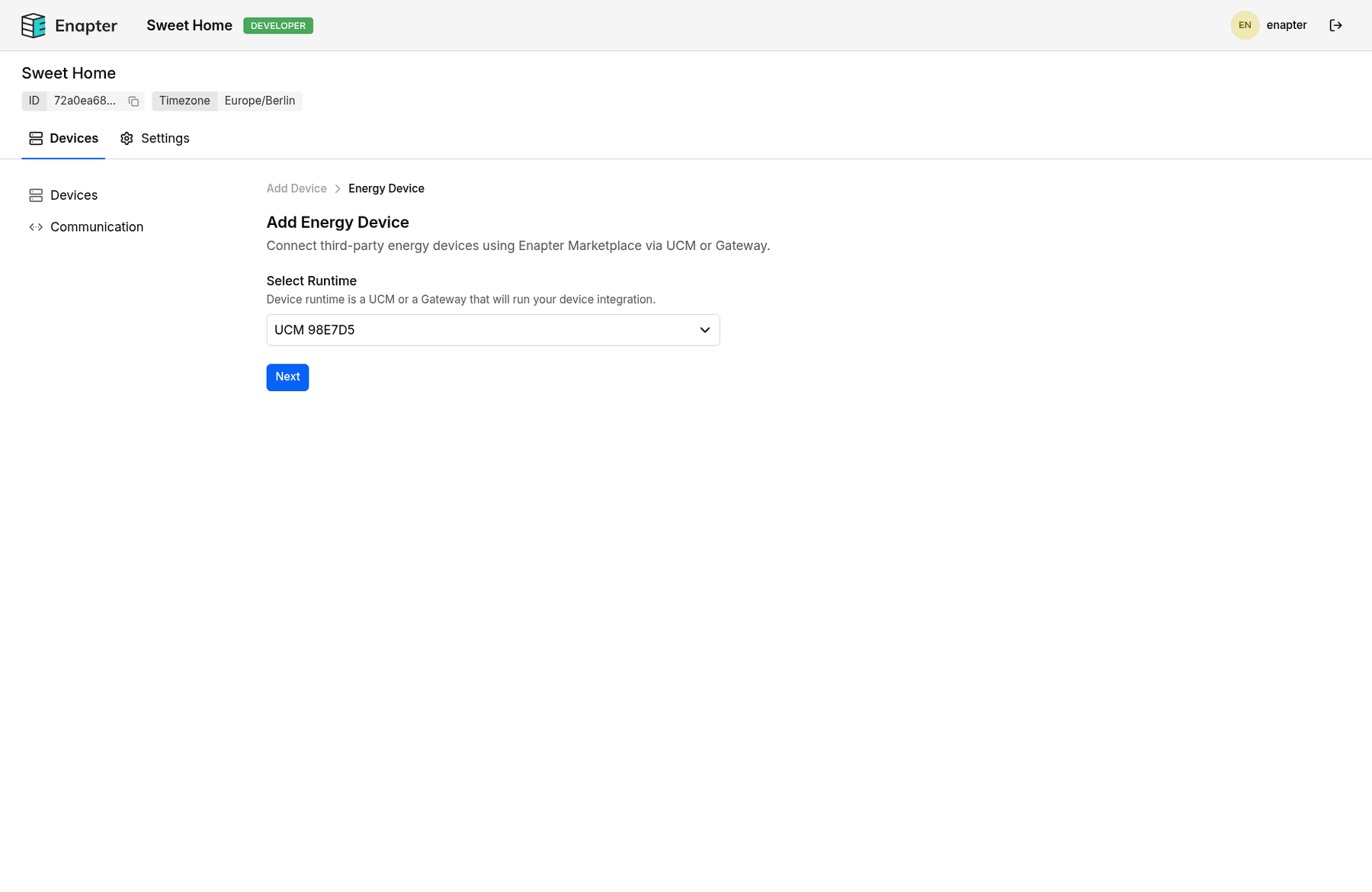

Choose UCM as a runtime

Select the blueprint. Select Another Device, enter the device name and upload the blueprint zip file.

Packaging the Blueprint

Before uploading, package your blueprint files (manifest.yml and main.lua) into a zip archive. Make sure the archive does not contain a root folder — the files should be at the top level of the archive:

zip -j blueprint.zip manifest.yml main.lua

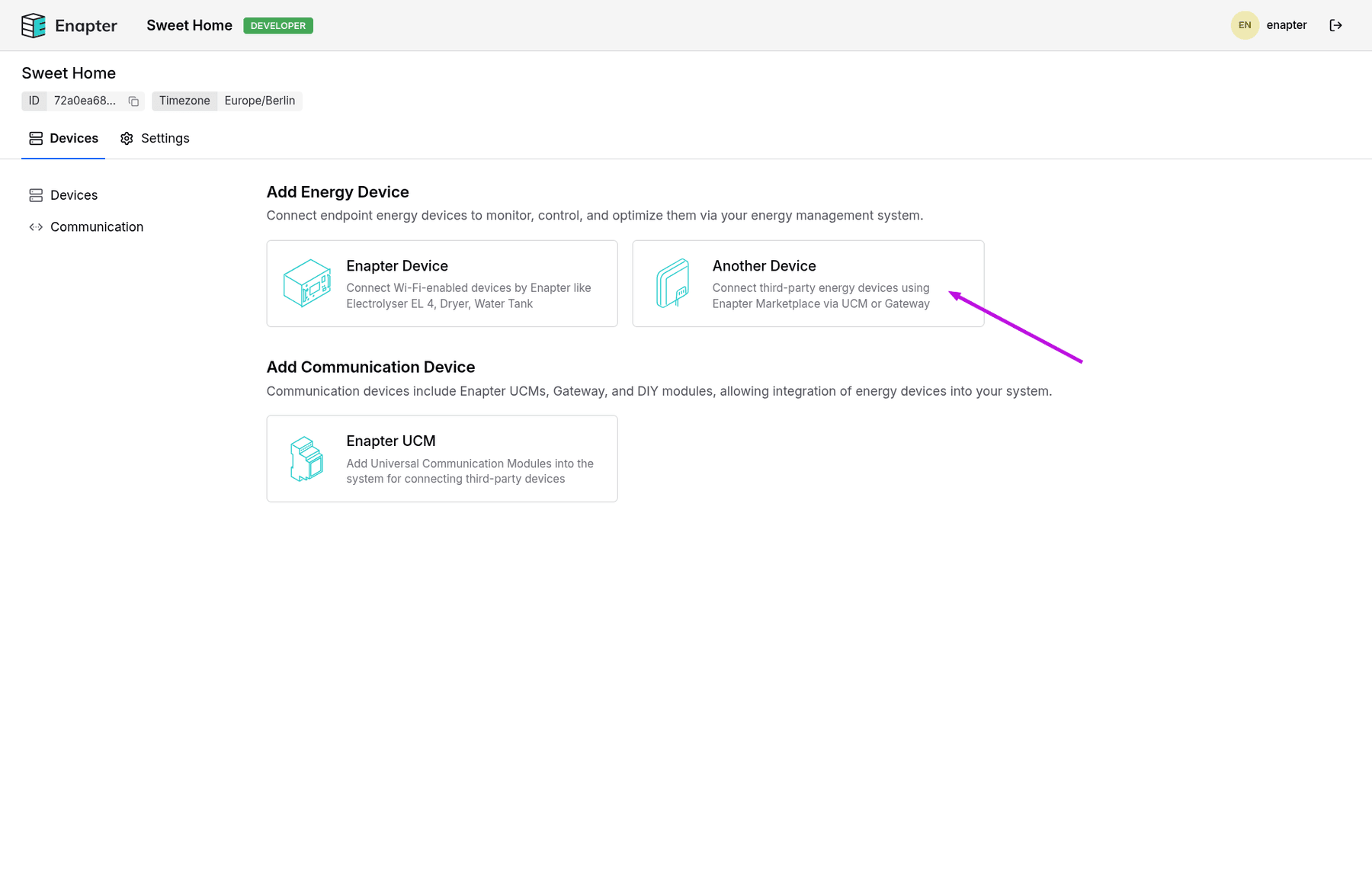

Select the type of device to create

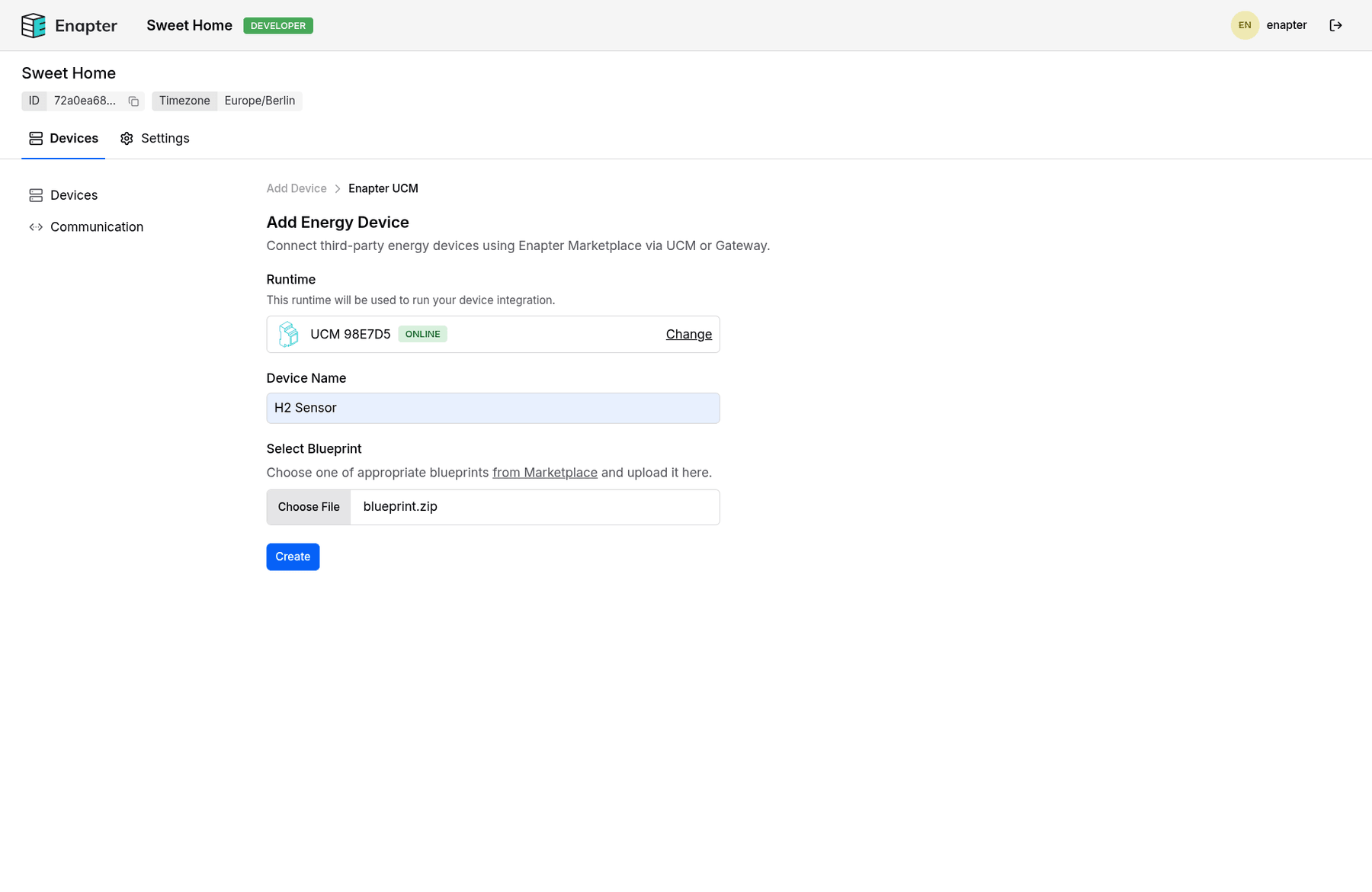

Enter device name and choose blueprint zip file

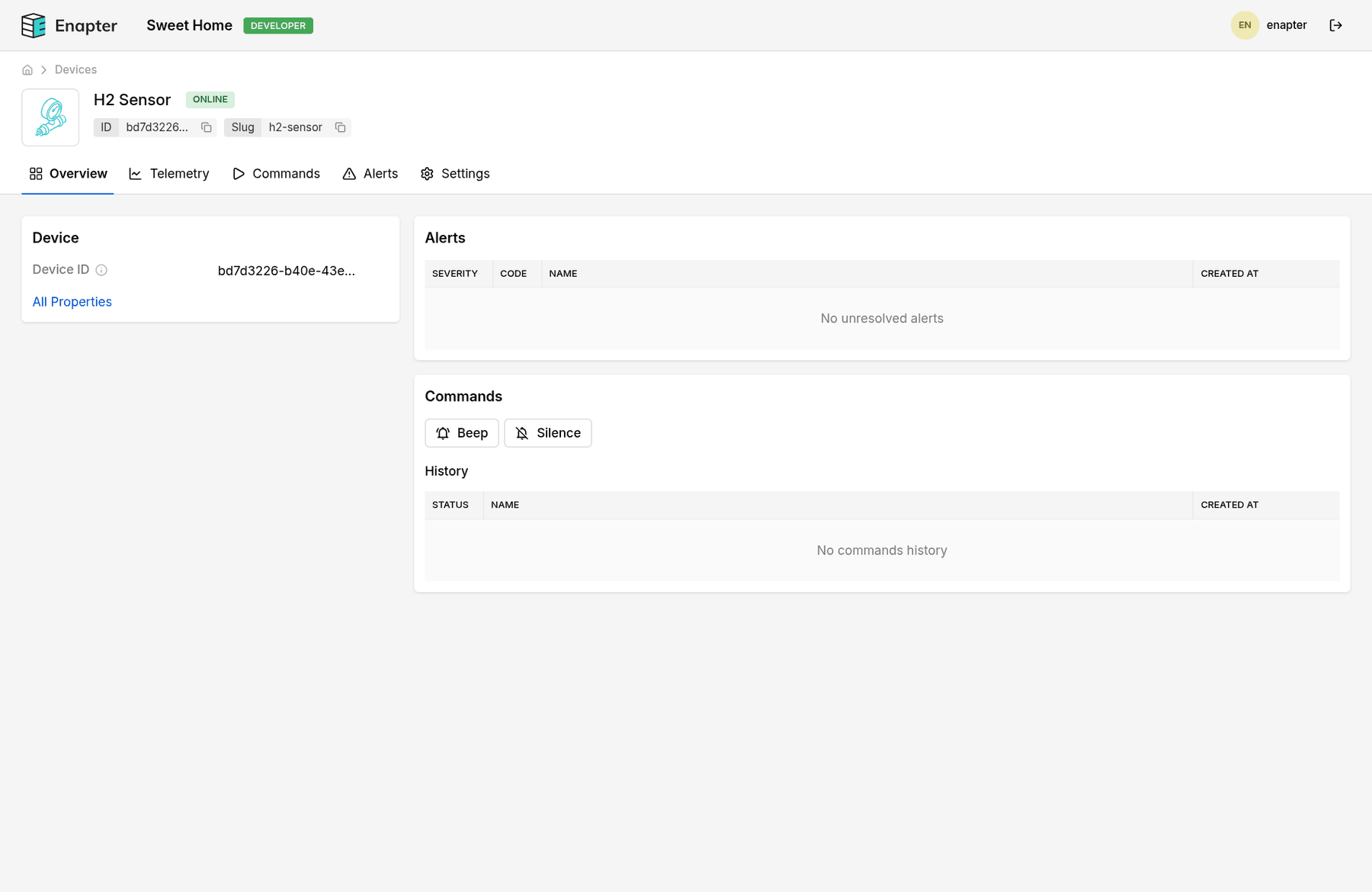

Device is finally created
