Create Device

Now that the blueprint is complete, we can move on to creating the device.

Gateway Web UI

caution

This approach is meant only for devices connected through Enapter Gateway

Open web browser and enter your Gateway's IP address. Click on Energy Managment System.

Enapter Gateway home page

Create a new device. Click on New Device and select virtual UCM as a runtime.

Create a new device

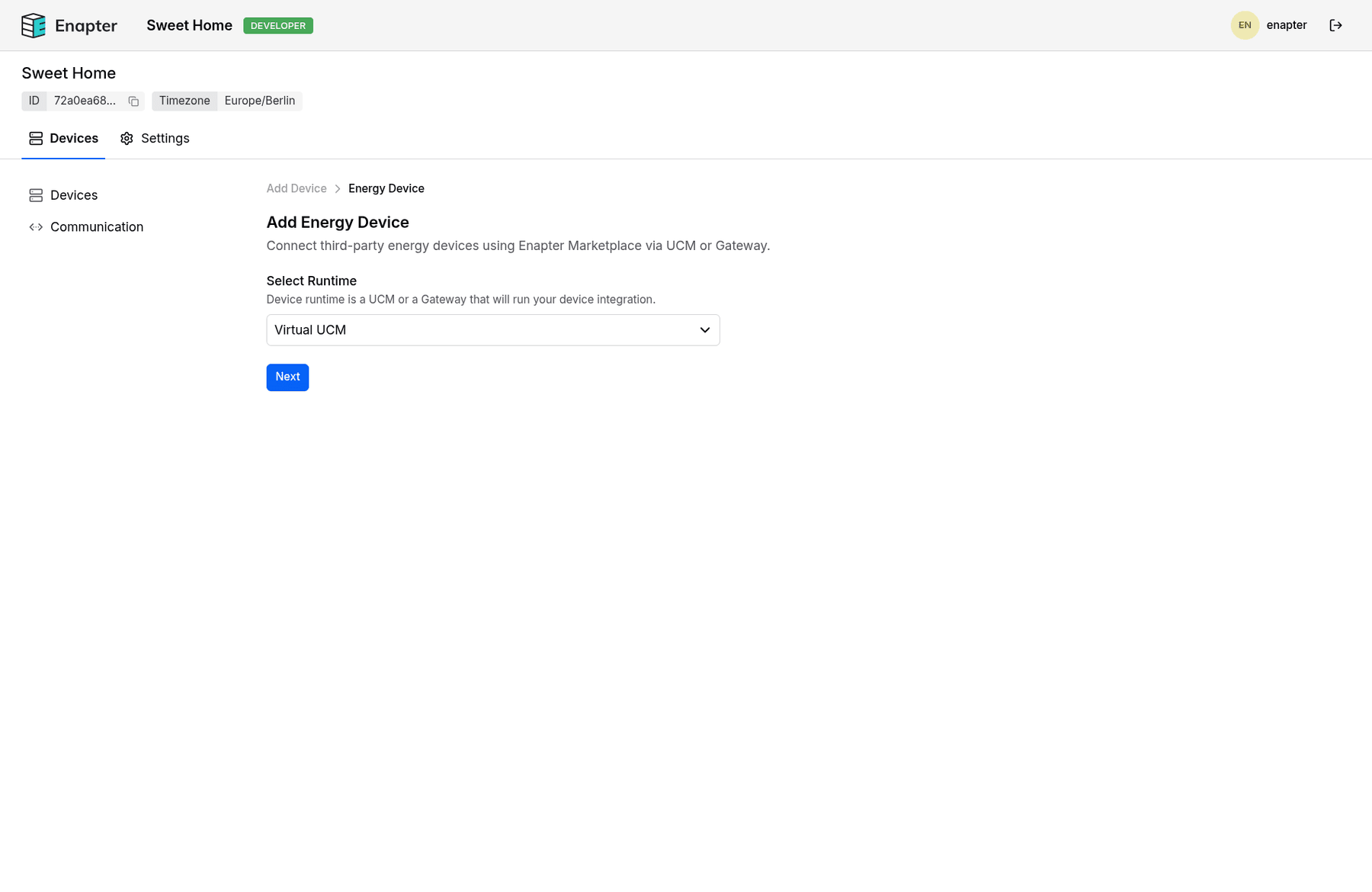

Choose virtual UCM as a runtime

Select the blueprint. Select Another Device, enter device name and upload the blueprint zip file.

Select the type of device to create

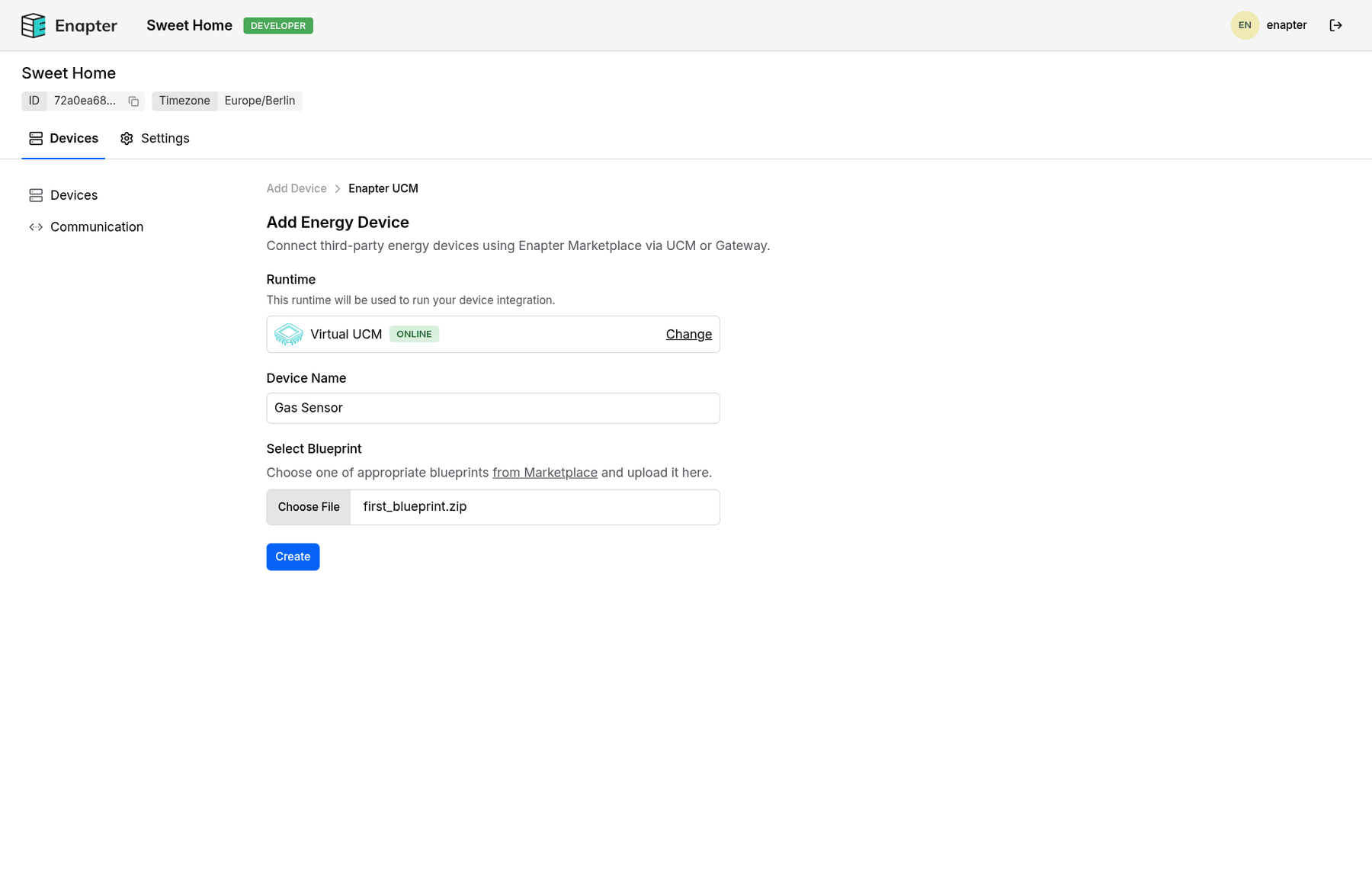

Enter device name and choose blueprint zip file

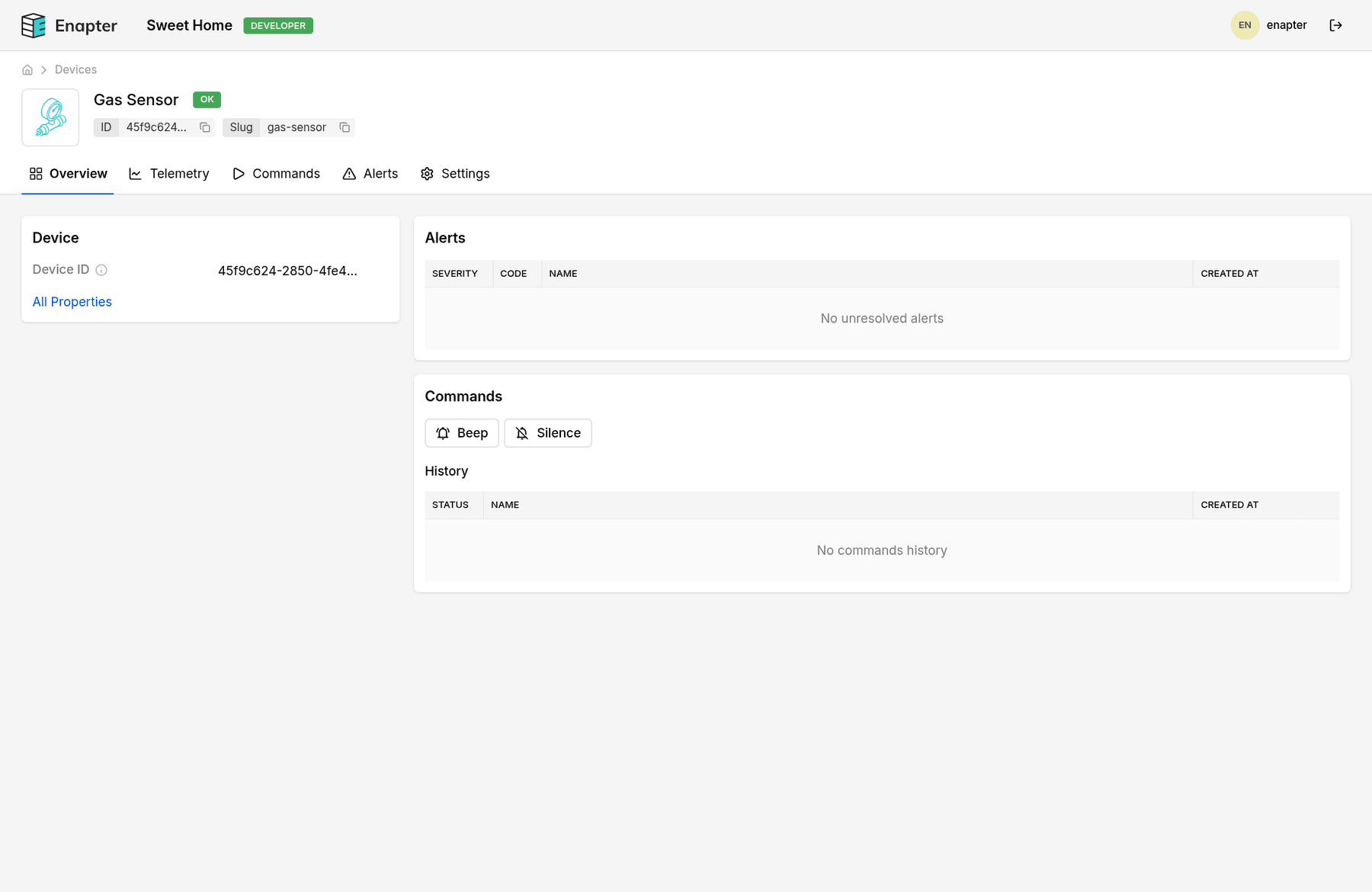

Device is finally created

Enapter CLI

API Token

You will need the API Token.

Get UCM Device ID

$ enapter3 device list

Response:

{
  "devices": [
    {
      "authorized_role": "INSTALLER",
      "blueprint_id": "0731254e-bfaa-5f90-8223-a53125b005ec",
      "id": "f646aecf-96b7-4c95-85e4-af6d0932579b",
      "implemented_profiles": [],
      "name": "Virtual UCM",
      "site_id": "72a0ea68-9430-457a-a30a-946cacc74295",
      "slug": "virtual-ucm",
      "type": "VIRTUAL_UCM",
      "updated_at": "2026-02-06T14:43:11.24156Z"
    }
  ],
  "total_count": 1
}

We need id value of Virtual UCM, which is f646aecf-96b7-4c95-85e4-af6d0932579b.

Create Lua Device

$ enapter3 device create lua-device \
--blueprint-path="<path/to/blueprint/folder>" \
--runtime-id="f646aecf-96b7-4c95-85e4-af6d0932579b" \
--device-name="Gas Sensor"

Response:

{
  "device_id":"45f9c624-2850-4fe4-b9be-f608cb550f9a",
  "slug":"gas-sensor"
}

HTTP API

API Token

You will need the API Token.

API base URL

Ensure you're using the correct API base URL. Below Enapter Gateway host name is used.

Get UCM Device ID

$ curl http://enapter-gateway.local/api/v3/devices  \
  -H 'X-Enapter-Auth-Token: {ACCESS_TOKEN}' \

Response:

{
  "devices": [
    {
      "authorized_role": "INSTALLER",
      "blueprint_id": "0731254e-bfaa-5f90-8223-a53125b005ec",
      "id": "f646aecf-96b7-4c95-85e4-af6d0932579b",
      "implemented_profiles": [],
      "name": "Virtual UCM",
      "site_id": "72a0ea68-9430-457a-a30a-946cacc74295",
      "slug": "virtual-ucm",
      "type": "VIRTUAL_UCM",
      "updated_at": "2026-02-06T14:43:11.24156Z"
    }
  ],
  "total_count": 1
}

We need id value of Virtual UCM, which is f646aecf-96b7-4c95-85e4-af6d0932579b.

Zip Blueprint Folder

You can also do this in the command terminal by running the following command:

zip -j -r first_blueprint.zip <path/to/blueprint/folder>

This way the archive won't contain root folder.

Upload Blueprint

$ curl -X POST  \
  http://enapter-gateway.local/api/v3/blueprints/upload \
  -H 'X-Enapter-Auth-Token: {ACCESS_TOKEN}' \
  -F data=@first_blueprint.zip

Response:

{
  "blueprint": {
    "id":"c4751c90-1ddc-4a29-8dc6-049536c13476",
    "created_at":"2026-02-06T15:34:09.782227Z"
  }
}

Now we have everything to create a device.

Create Lua Device

$ curl -X POST \
  http://enapter-gateway.local/api/v3/provisioning/lua_device \
  -H 'X-Enapter-Auth-Token: {ACCESS_TOKEN}' \
  -d '{
    "runtime_id": "f646aecf-96b7-4c95-85e4-af6d0932579b",
    "blueprint_id": "c4751c90-1ddc-4a29-8dc6-049536c13476",
    "name": "Gas Sensor"
  }'

Response:

{
  "device_id":"45f9c624-2850-4fe4-b9be-f608cb550f9a",
  "slug":"gas-sensor"
}
