Explore Device
Once the device has been created, we can play with it a little!
- Mobile App
- Gateway Web UI
Configure the device.
- Go to the Overview -> All Properties. Since we did not configure the sensor, it does not send any properties.
- To change it go to the Settings, click on Sensor group and select a gas type.
- Then you can check the Overview -> All Properties and see that now all properties are shown.

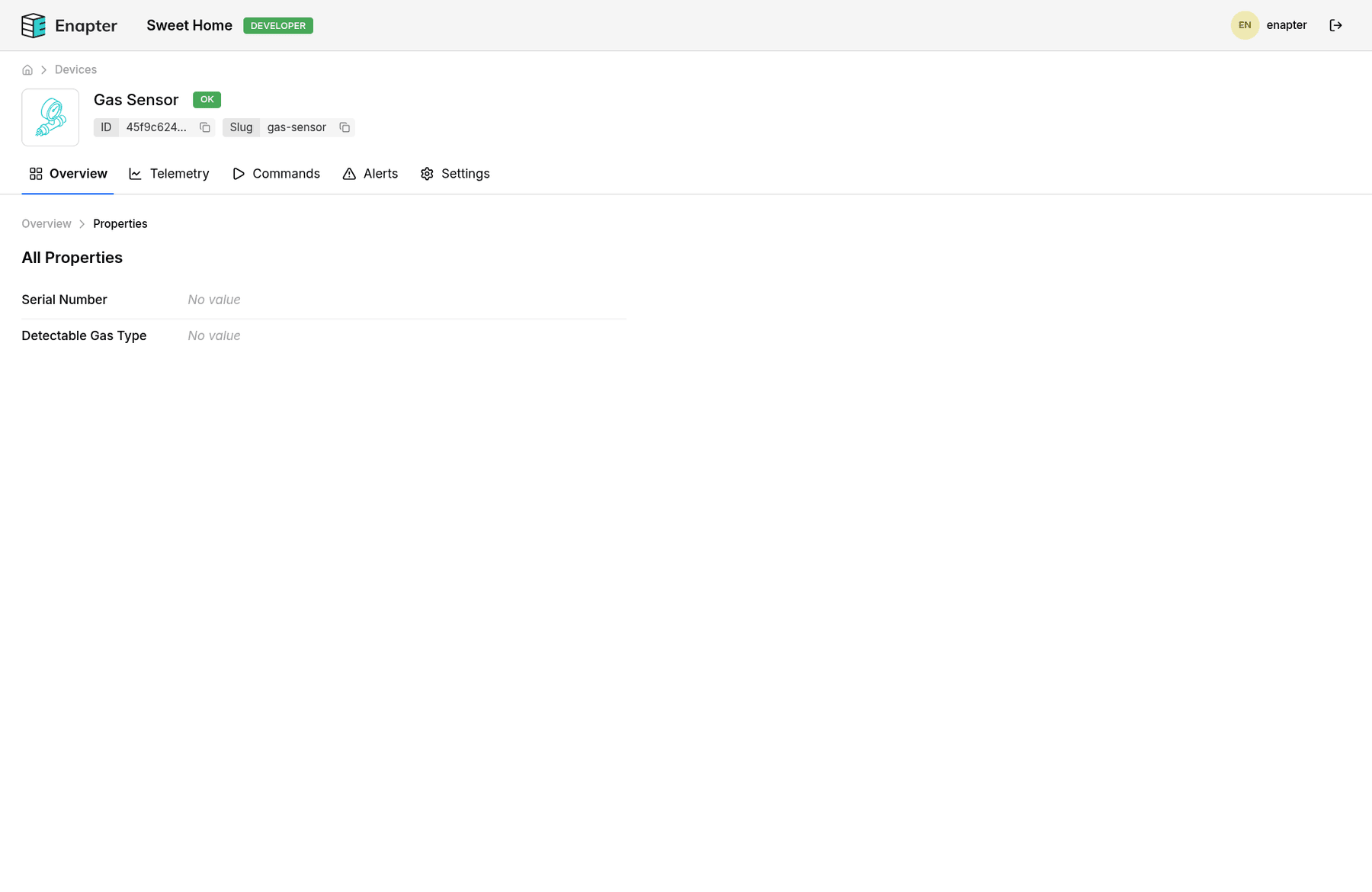

No device properties yet

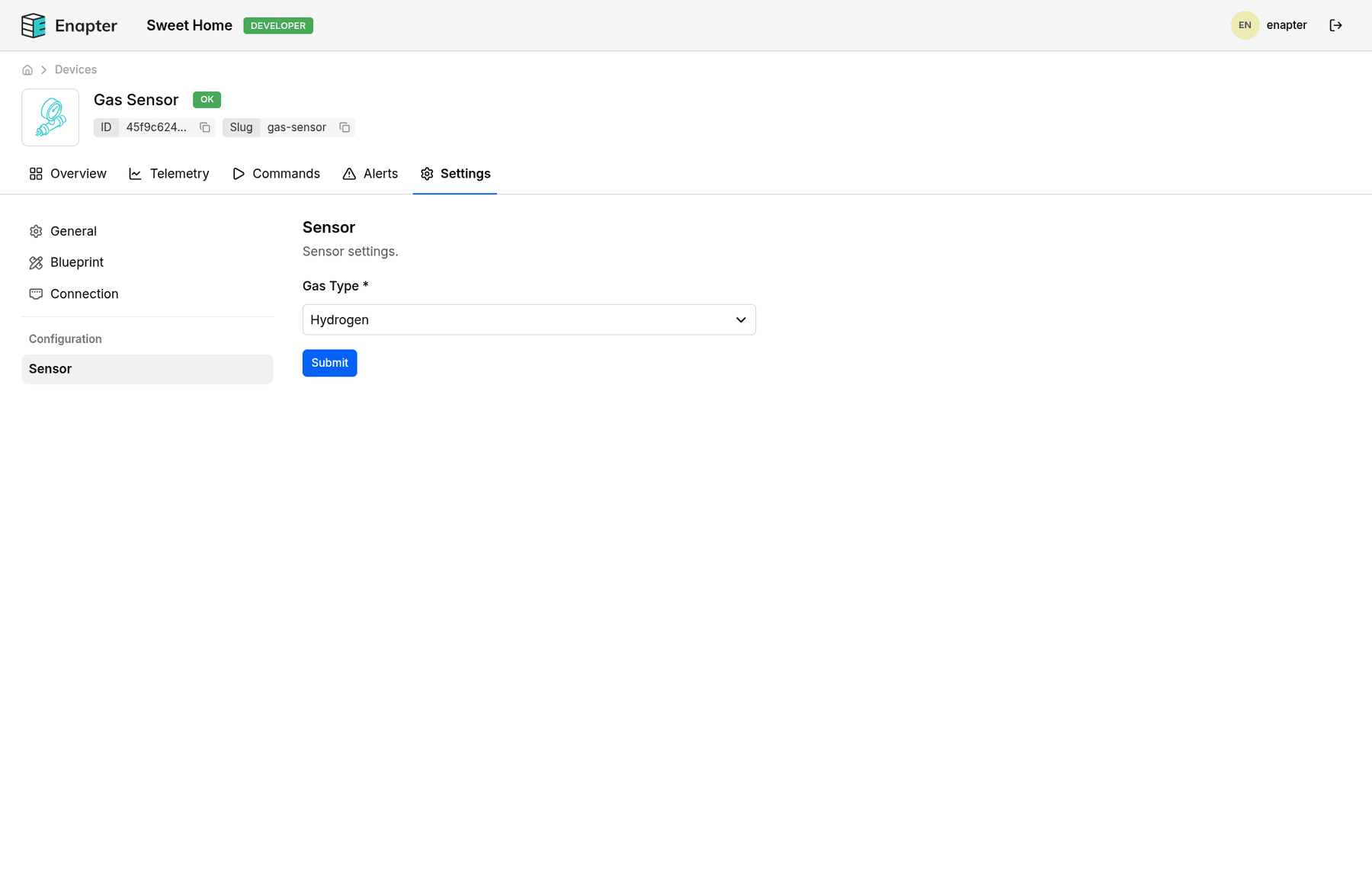

Select the gas type
Device properties are set
Run commands. You can run the Beep command to raise High Gas Concentration alarm. After that try to run the Silence command.

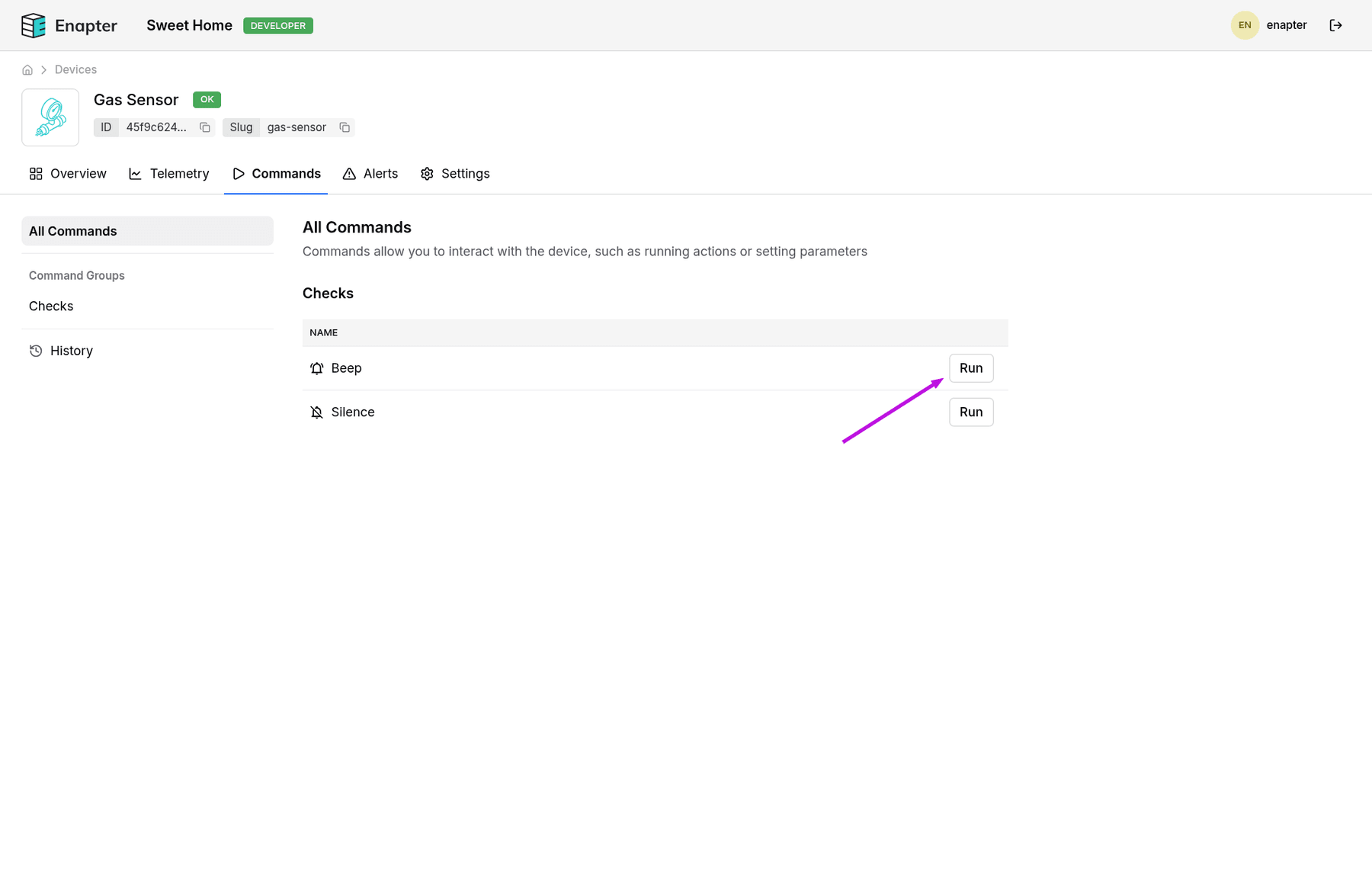

Run Beep command

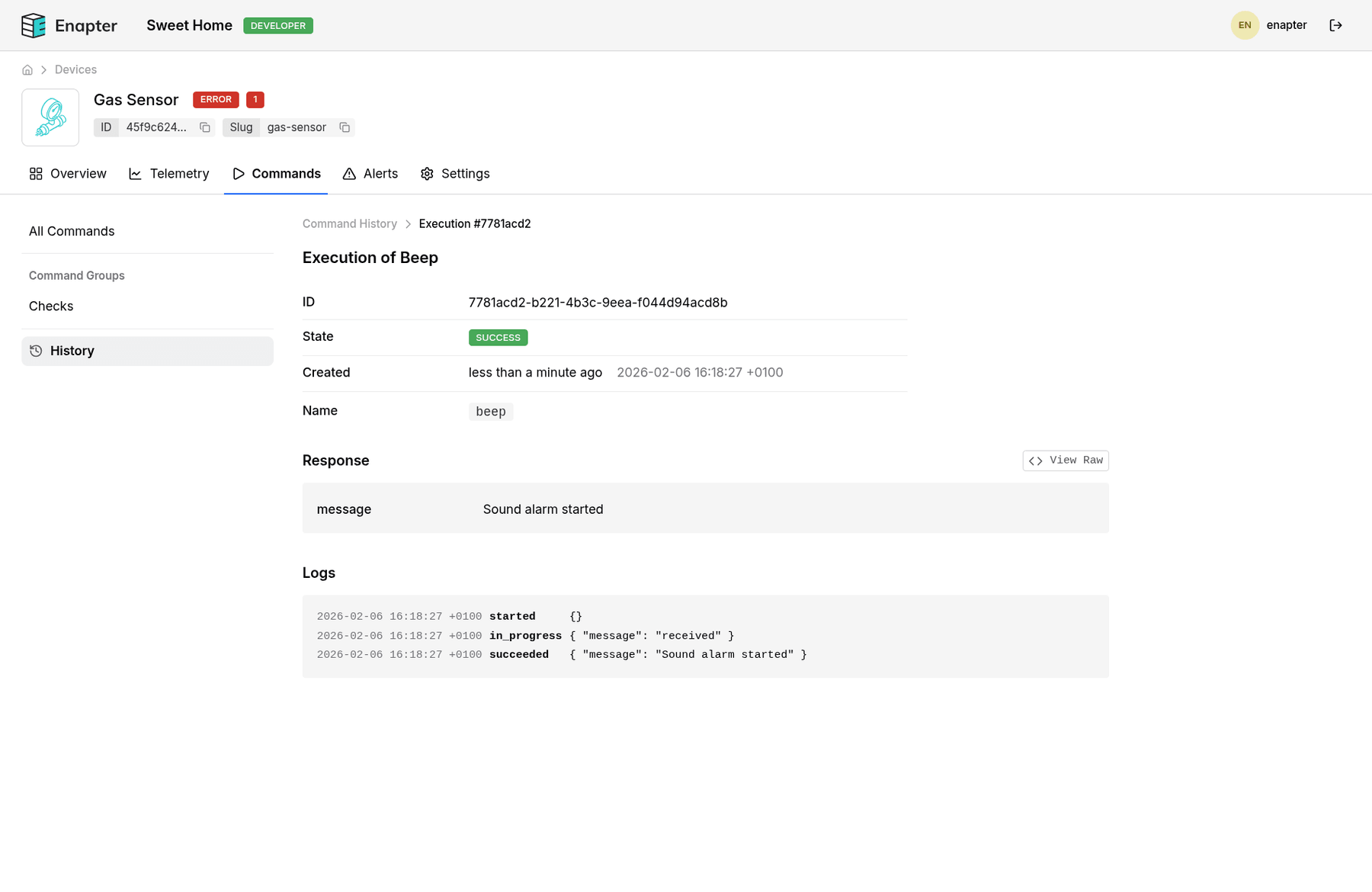

Command Beep successfully executed

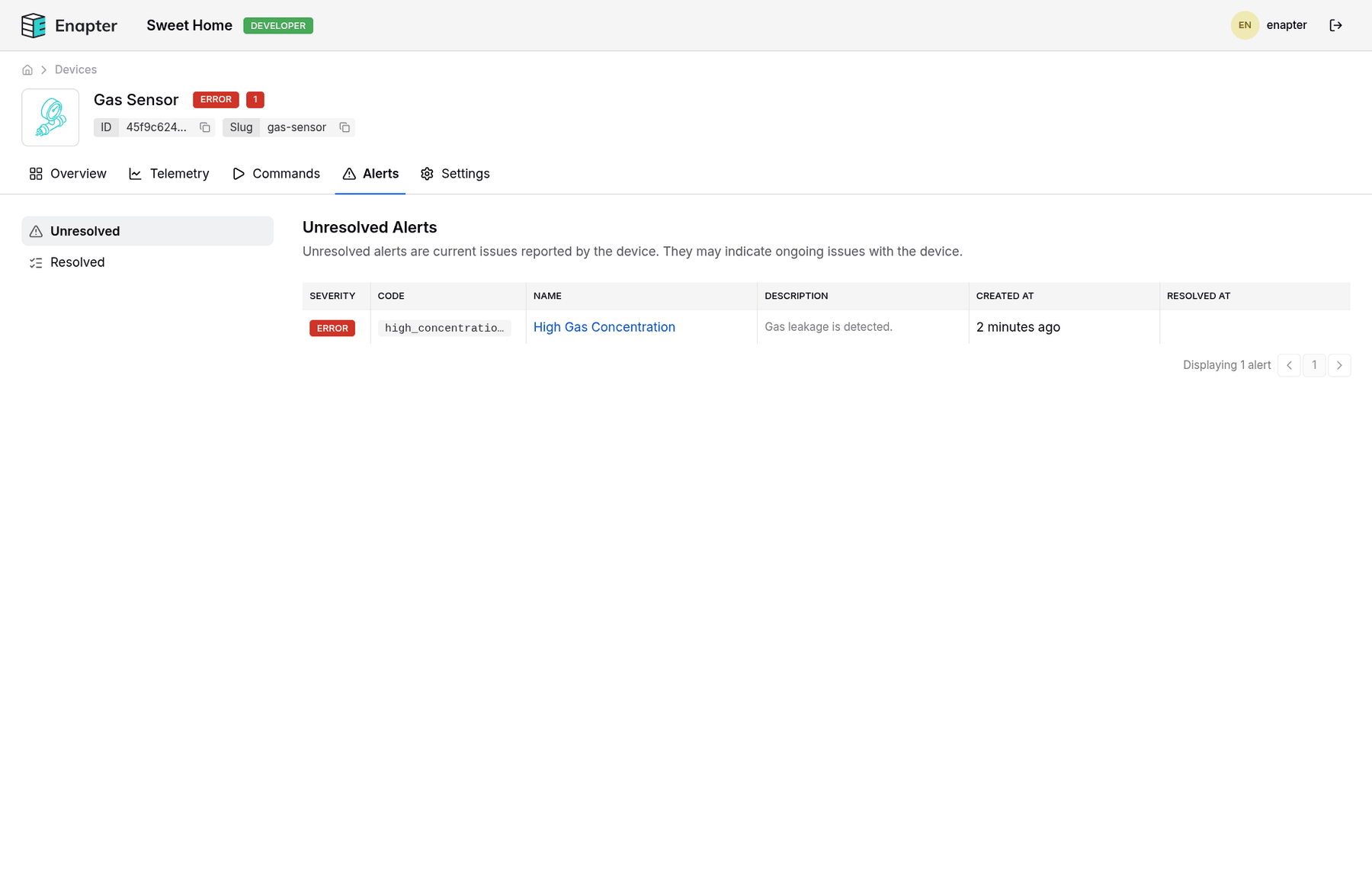

Alarm is active
Observe device telemetry. In the Telemetry tab you can see real-time data coming from the device, status and alerts included.

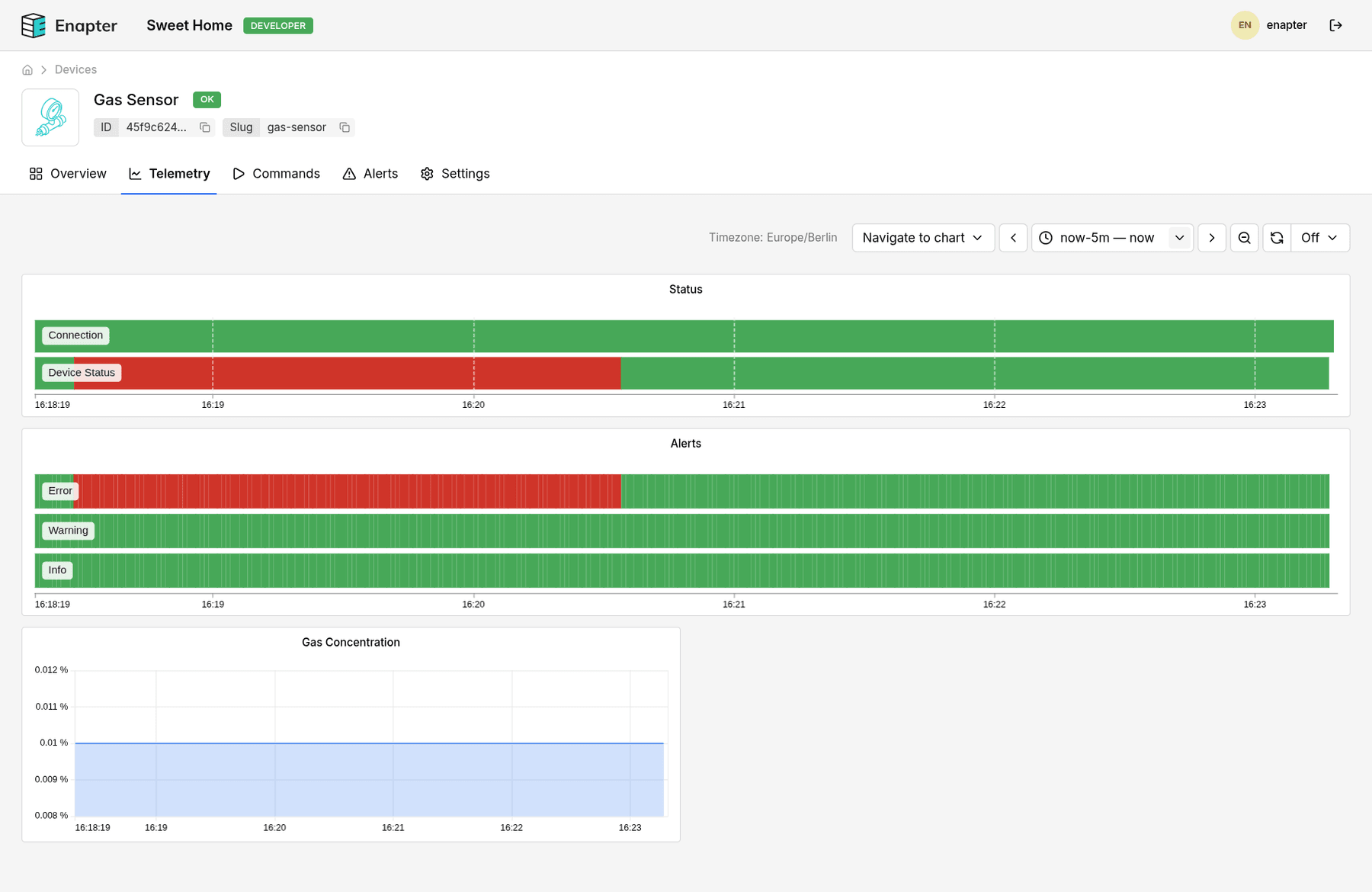

Sensor telemetry
Configure the device.
- Tap on the Settings icon -> All Properties. Since we did not configure the sensor, it does not send gas type.
- To change it go back to the Settings, then tap on Configuration -> Sensor group and select a gas type.
- Then you can check the All Properties again and see that now all properties are shown.

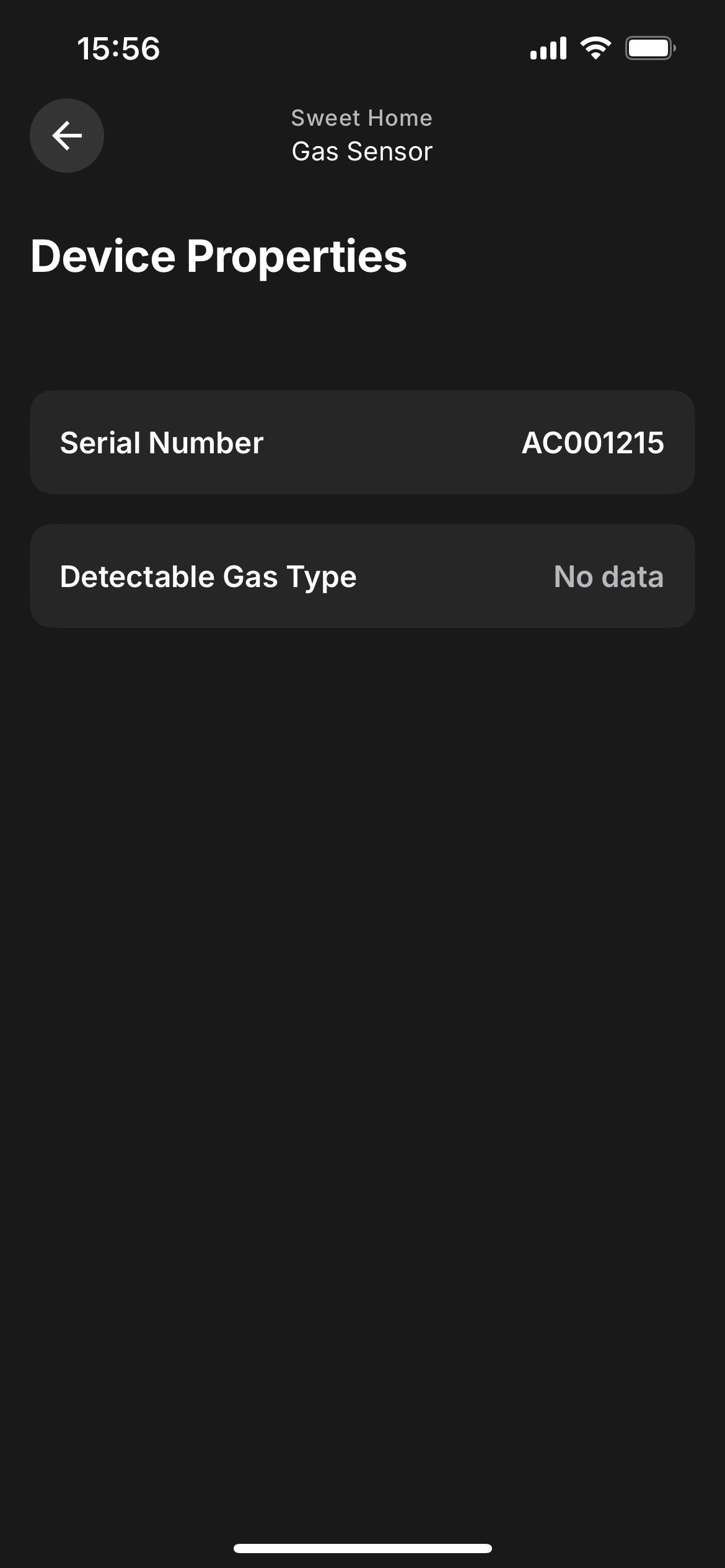

No device properties yet

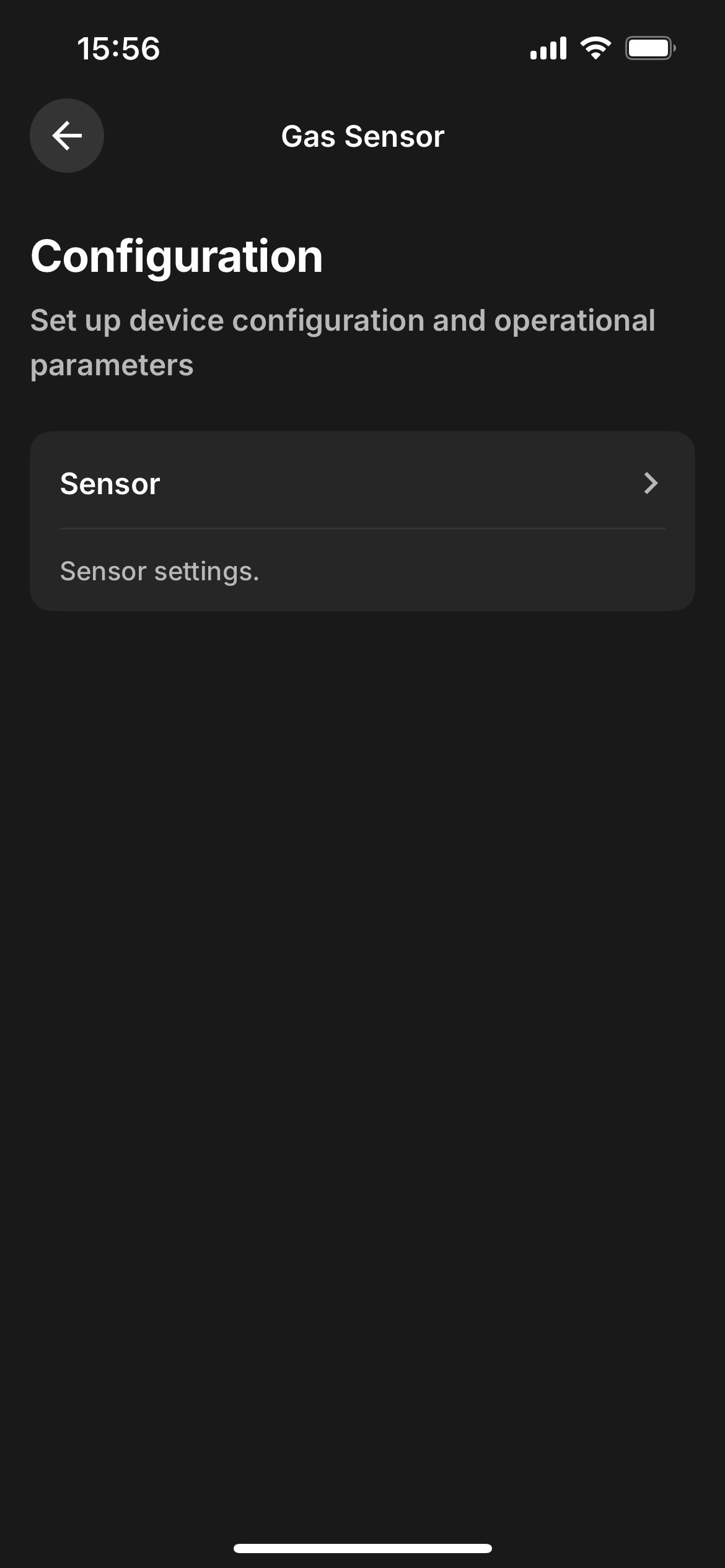

Go to Configuration

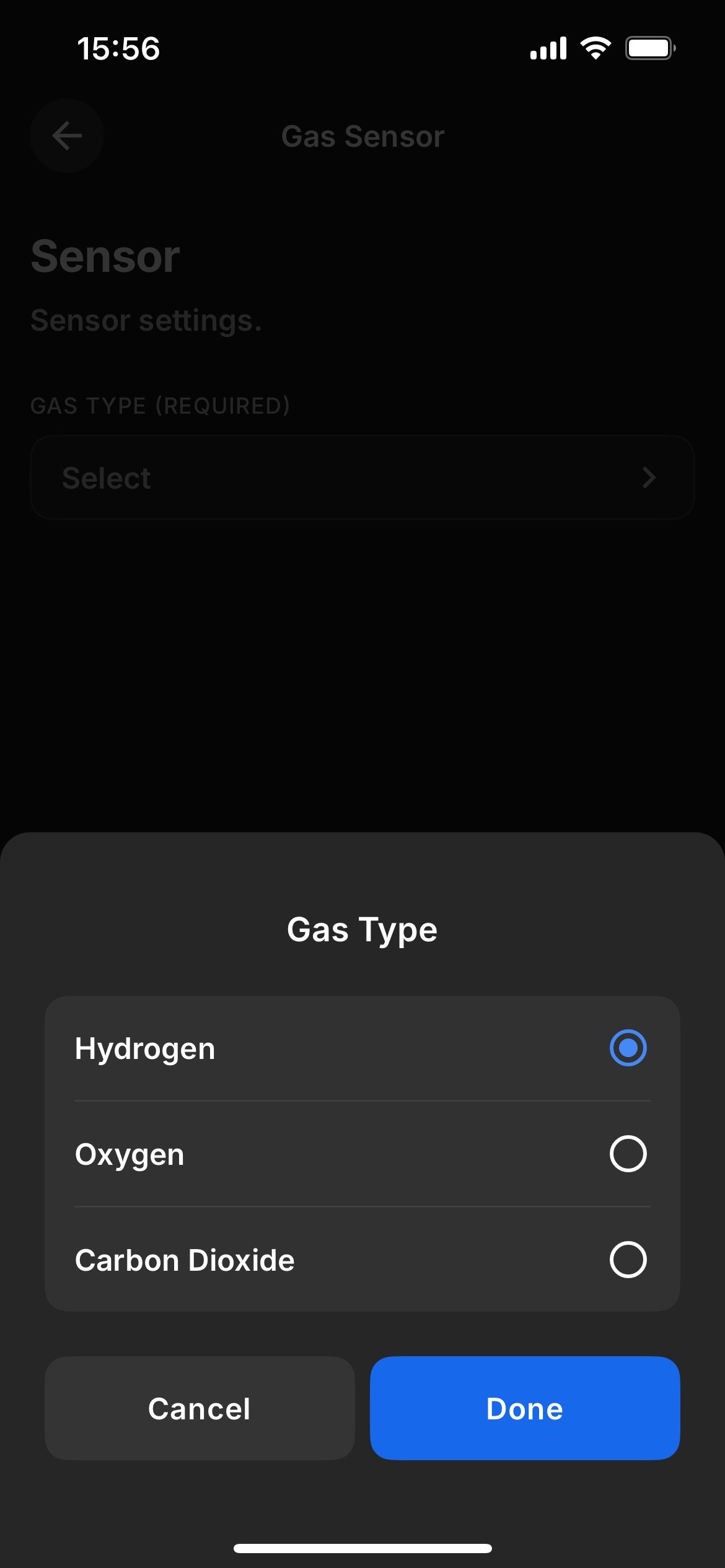

Select a gas type
Run commands. You can run the Beep command to raise High Gas Concentration alarm. After that try to run the Silence command.

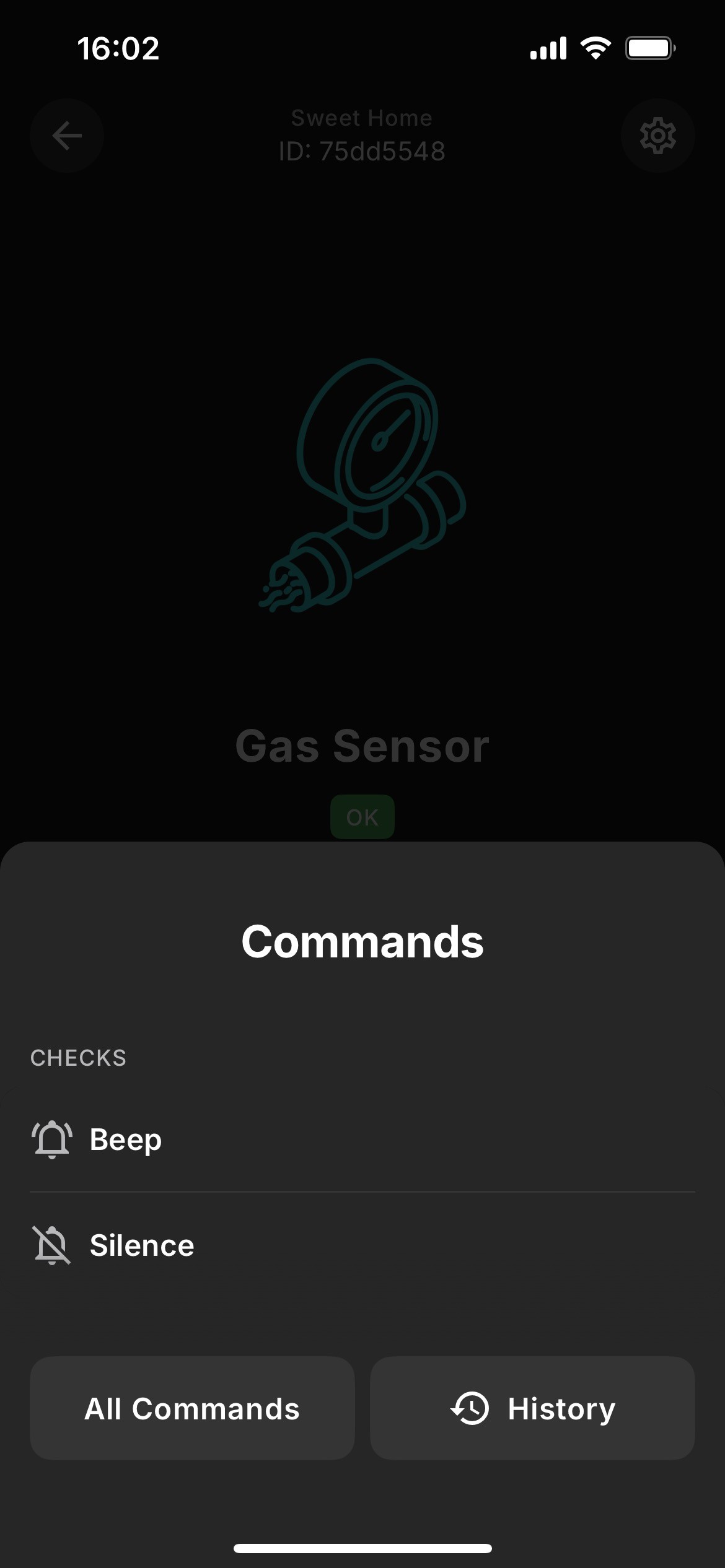

Run Beep command

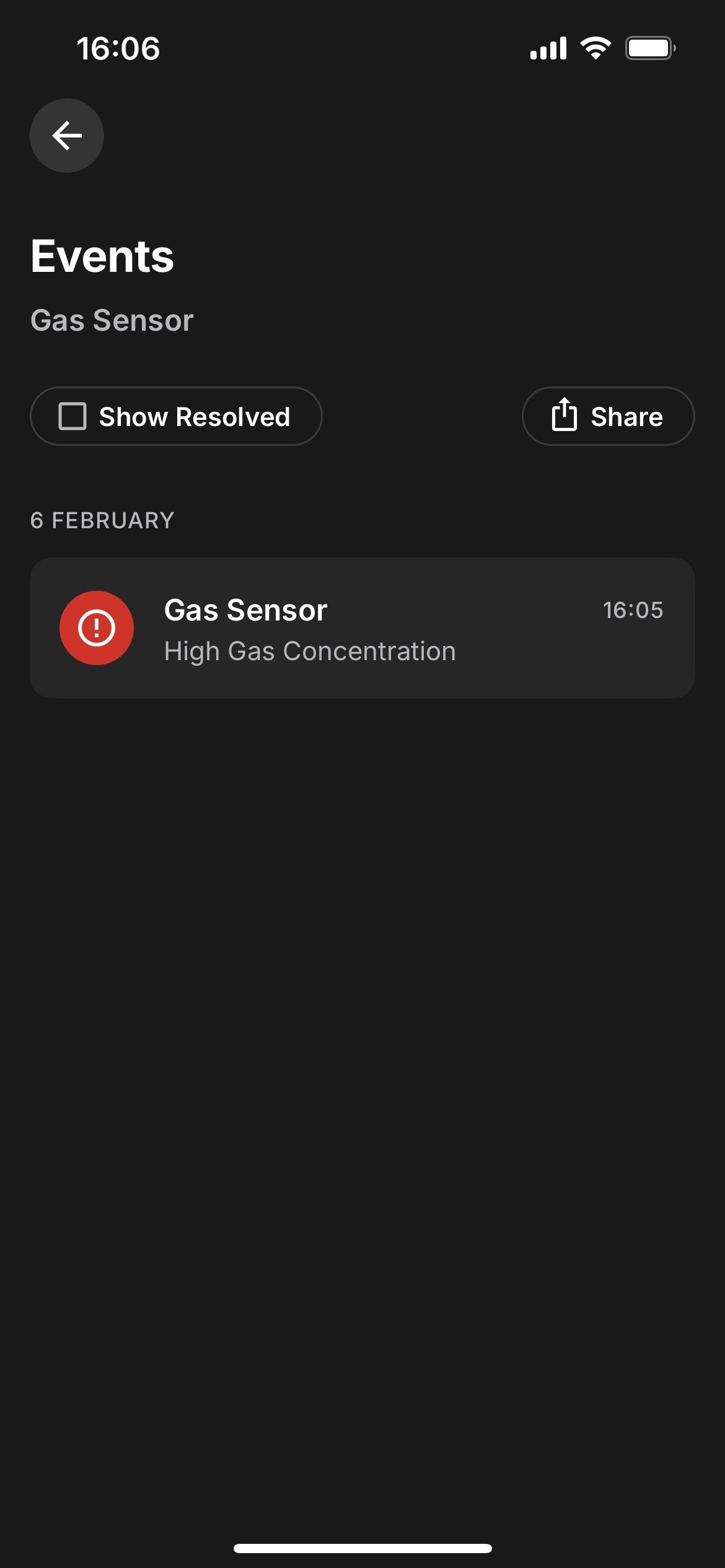

Command Beep successfully executed, the alarm is raised

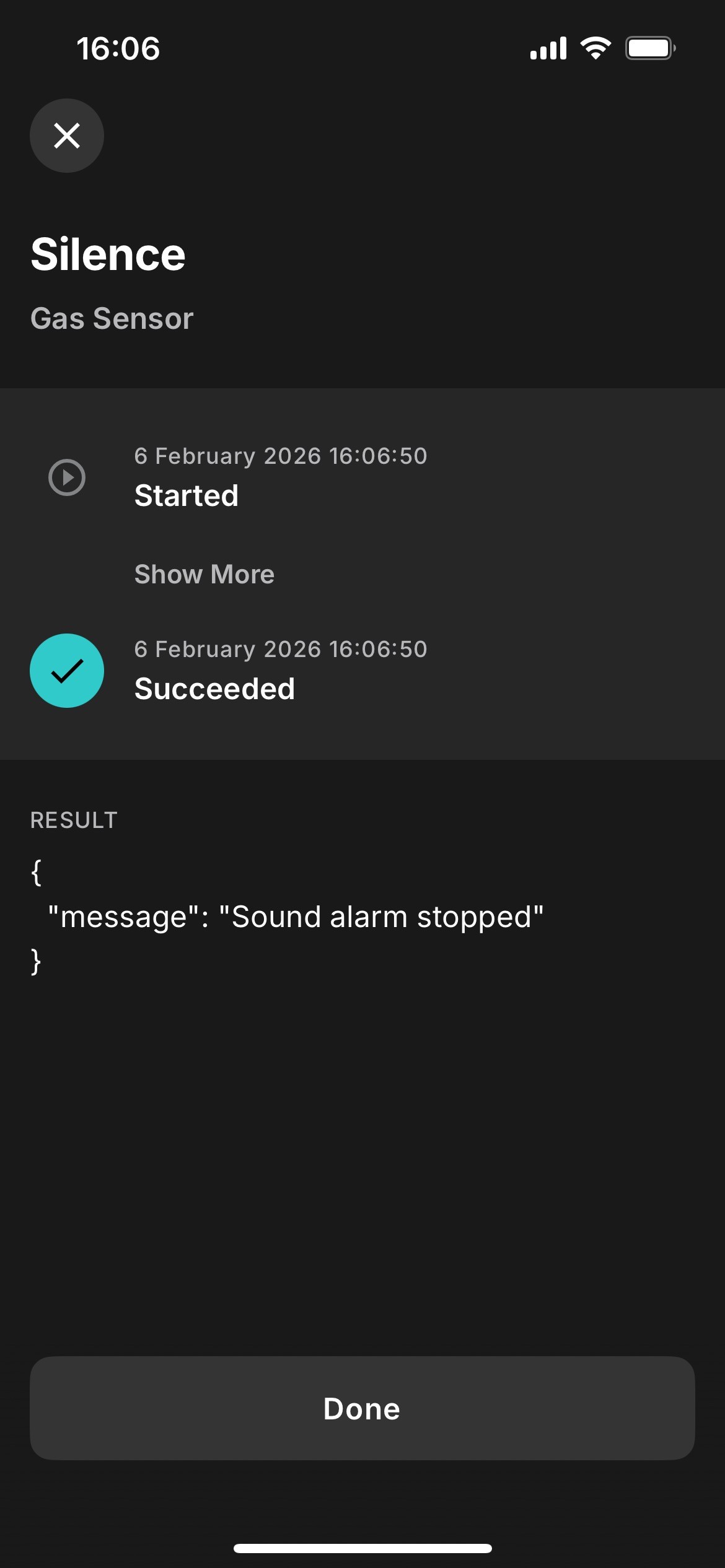

Silence command is executed
